73 kW | Three Phase ∣ up to 12 MPPTs (LV)
GoodWe is a company that specializes in the manufacturing and distribution of solar inverters and energy storage solutions. An inverter is an essential component of a solar energy system as it converts the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used to power appliances and fed into the electrical grid.

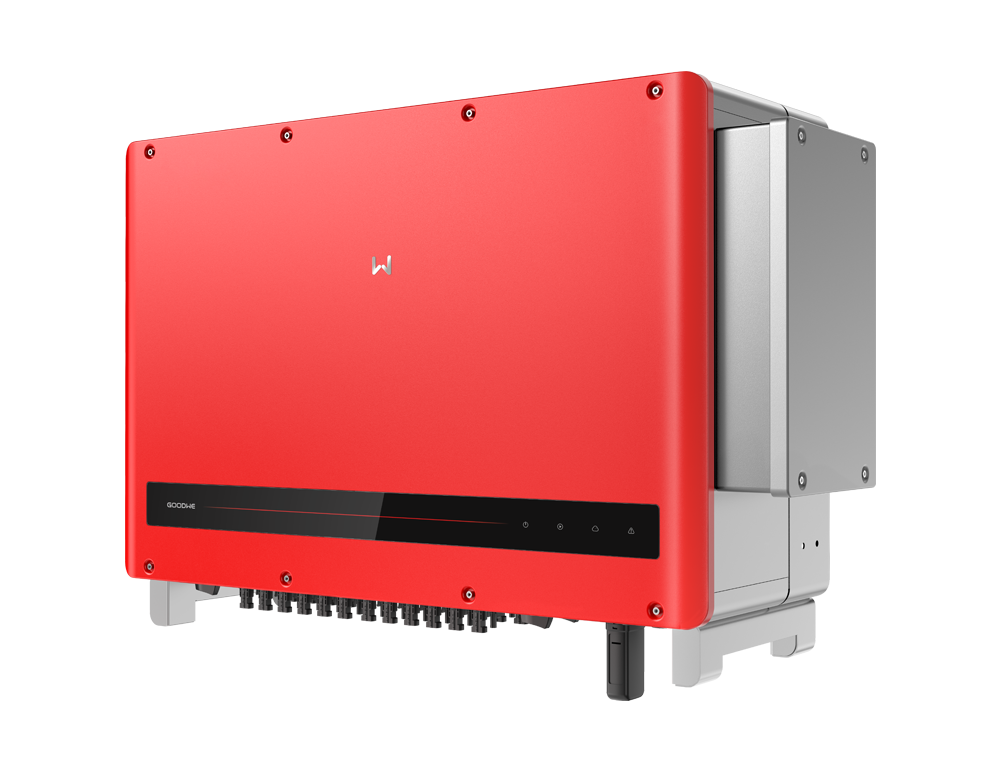

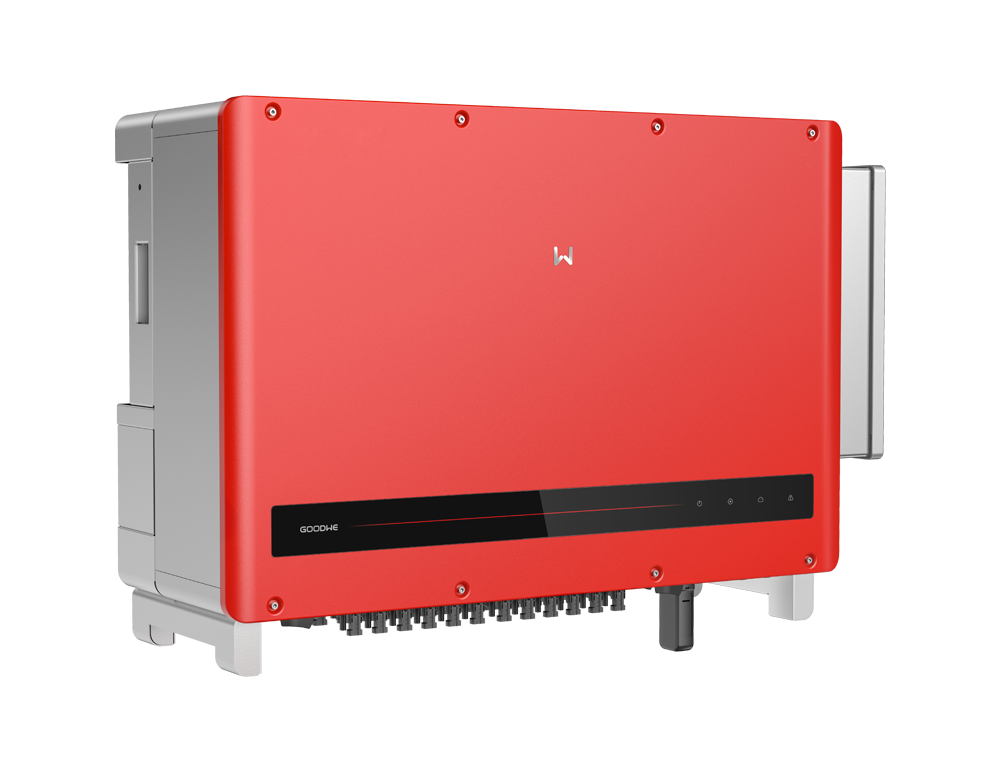

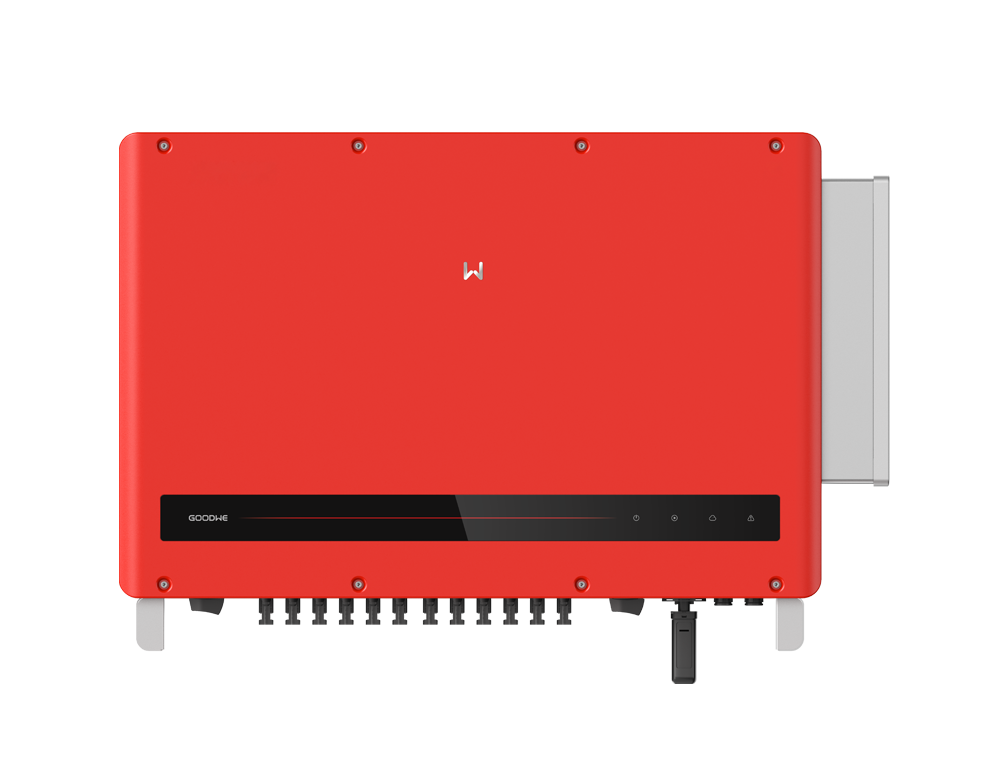

The HT 1100 Vdc Series 73-136 kW is Good We’s new string inverter for C&I and small utility projects to boost your power and profit. Generate your solar power and make use of it with this centerpiece of the clean energy system. The HT Series seamlessly incorporates its technical strengths designed to achieve higher savings in the installation, enhance productivity with increased energy yields, realize high power density and diversify available monitoring options.
String level monitoring
Optional Type I Surge Protection & AFCI
IP66 and C5 protection
Internal humidity monitoring
Superb Safety & Reliability
Equipped with IP66 and C5 protection, HT 100-136kW Series endures harsh environements for stable performance throughout its life cycle. Both the DC side and AC side are equipped with optional Type I surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.
IP66 and C5 protection
Optional Type I Surge Protection & AFCI
Optimal Generation for Higher Return
With the compatibility with bi-facial modules and maximum 15A DC input current per string, HT can deliver comprehensive commercial energy yields for increased ROI.
Specification:
Model: GW73KLV-HT
Max Input Voltage (V): 800
Max. Input Current per MPPT (A): 30
Number of MPP Tracker/Number of Strings per MPPT: 12/2
Max. Efficiency: 98.4%
Nominal Output Voltage (V): 220 3L/N/PE or 3L/PE
